Post-consumer recycled fiber recycled FSC Certified virgin fiber Convential virgin paper Plastic laminated Vegetable inks UV inks Aqueous coating UV varnish Fluorescent pigments Petroleum inks Foil stamping Metalic picments Starch adhesive Saddle stitch Perfect bind (EVA hot melt) Perfect bind (PUR hot melt) Reclaimed materials Act II Falconboard Environboard Tyvek Foam core PVC

What materials are best and worst to use? There is no easy formula for sustainability but remember that you need to think about more than what something is made of. Sustainability is assessed on how much energy is used to create it, to use it, and then to dispose of it. This is called a material’s ‘embodied energy’.

who's the smartest of them all?

Don’t be fooled by this seemingly green claim. Every paper and board - unless it’s coated in plastic - can be recycled! Look for recycled content or even better, post-consumer recycled content.

“Recyclable.” Ha!

The more ink coverage, the harder to recycle. Challenge yourself to design for maximum impact while minimizing big areas of color.

Shrink the ink

x

Plastic laminated paper

Whatever good qualities paper has are easily eclipsed by encasing it in plastic. Unsustainable source, moderate energy used, and prevents recycling or even decomposing.

x

Conventional virgin fiber

Non-recycled; i.e. trees are cut down to make it. Forests are not necessarily well managed. The worst virgin fiber is from forests from far away, increasing transport energy and pollution.

x

FSC certified virgin fiber

Non-recycled; i.e. trees are cut down to make it. The Forest Stewardship Council tries to ensure that paper with FSC certification is from sustainably managed forests.

x

Recycled

Contains some reclaimed material, but this can be from the paper manufacturer itself, not from consumers. Low energy used and easy to recycle.

x

Post-consumer recycled

Contains material which has reached the consumer, been used and then recycled. Just ‘recycled’ could simply mean it has offcuts collected by a paper maker at their factory.

x

Metallic pigments

Metal pigments give a certain shine but there is a big price to pay. The metals are an unsustainable, high energy source and create problems for recycling.

x

Foil stamping

Contains metal which is a high-energy source material. It also causes whatever piece of print it is used on to become difficult to recycle. And besides, it usually looks tacky.

x

Petroleum inks

Traditionally most inks are petroleum based, though there is a big push to veggie-based inks. This means an unsustainable, high-energy source, though they do not prohibit recycling.

x

Fluorescent pigments

Fluorescent inks need to be specified as a “spot color” in addition to CMYK. Unfortunately fluorescents are usually petroleum based, so watch out.

x

UV varnish

These are mineral oil based and contain solvents. If you want a varnish it’s better to go with an aqueous (water-based) coating.

x

Aqueous coating

If you want an additional finish, go for something water-based like an aqueous coating.

x

UV inks

UV inks are formulated to dry very quickly on press under UV lights. They are not solvent-based (good) but are not from sustainable sources.

x

Vegetable Inks

Veggie/soy-based inks are rapidly overtaking traditional petroleum-based inks. However the rapid global expansion of the soy industry may bring its own problems. Watch this space.

x

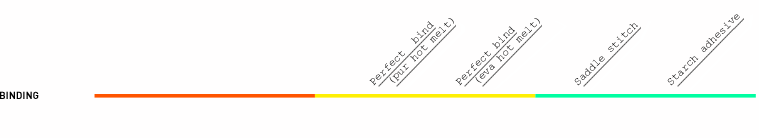

Perfect bind (PUR hot melt)

PUR is polyurethane; a plastic-based glue. It only take moderate energy use, but because of the plastic content it can prohibit recycling of the paper portion of the piece.

x

Perfect bind (EVA hot melt)

EVA is ethylene vinyl acetate, a plastic-based glue. It only take moderate energy use, but because of the plastic content it can prohibit recycling of the paper portion of the piece.

x

Saddle stitch

Essentially stapling through the center fold of a series of nested folios. Avoids the need for plastic glue and uses little material. Does not inhibit recycling.

x

Starch adhesive

As a plant product, starch is a good natural source, takes minimal energy to use and allows the piece to be easily recycled.

x

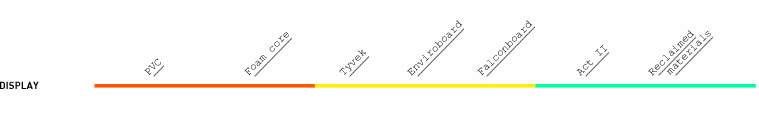

PVC

Polymer of vinyl chloride, a.k.a. vinyl. Producing it creates toxic chemicals, and at the end of its lifetime it must be buried or burned. Burning it produces hydrochloric acid. Nasty stuff.

x

Foam core

Has an inner core of polystyrene. Made from petroleum. Benzene - a known carcinogen - is used in its production. Technically recyclable, it takes a very, very long time to break down.

x

Tyvek

A strong synthetic material made from HDPE (high density polyethylene). Made from petroleum, but still relatively easy to recycle. See Tyvek in use in the Material Gallery.

x

Enviroboard

A rigid, composite board made of environmentally safe, non-plastic materials; a good alternative to foamcore, and can be recycled. See Enviroboard in use in the Material Gallery.

x

Falconboard

A strong, paper-based board with minimum 20% recycled content; a good alternative to foamcore, and easily recycled. See Falconboard in use in the Material Gallery.

x

Act II

A durable, white, canvas-like fabric composed of 100% post-consumer recycled polyester from recycled plastic drinking bottles. See Act II fabric in use in the Material Gallery.

x

Reclaimed materials

No matter how green a commercial material, it will always be trumped by using no new material at all. See examples including newspapers, map, shopping bags, and an old dive suit bag.
